GENERAL SPECIFICATIONS

INTERIOR.........................WELDED ANGLE IRON FRAME. STAINLESS STEEL, TYPE 304,
                                     TANK, FULLY WELDED SEAMS.
EXTERIOR.........................POLISHED STAINLESS STEEL. ALUMINUM BACK and
                                     GALVANIZED STEEL BOTTOM (STAINLESS STEEL OPTIONAL).
                                     TWO SECTION BODY OPTIONAL.
INSULATION.................... 2� EXPANDED POLYSTYRENE.
DRAIN...............................1� MPT, CENTER BOTTOM.
LEGS.................................6� ADJUSTABLE with STAINLESS STEEL FEET.

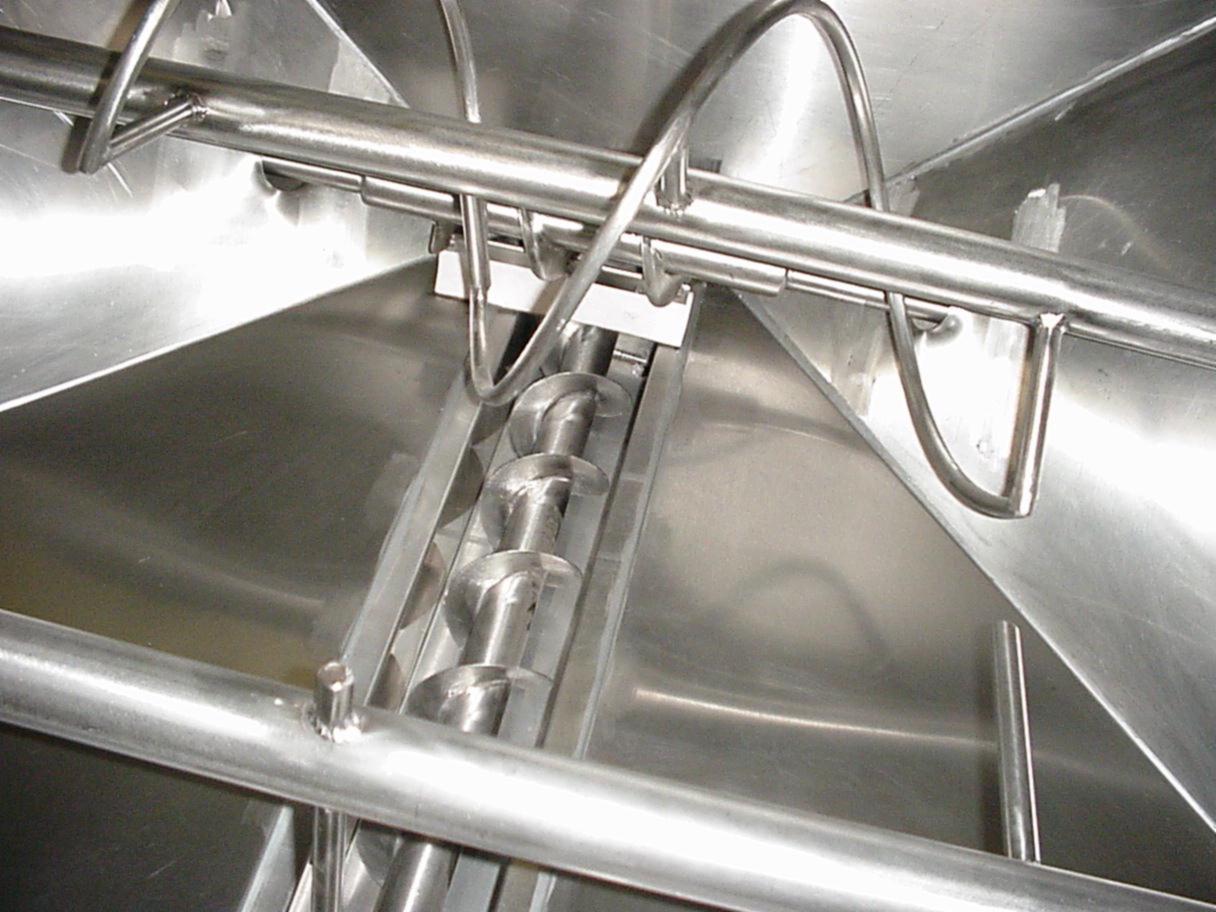

DELIVERY SYSTEM............SPIRAL AUGER TYPE, STAINLESS STEEL CONSTRUCTION.
ELECTRICAL.....................208-230v/60hz/1ph (OTHER VOLTAGES AVAILABLE)
                                   (3) 3/4 HP GEAR MOTOR, 5.5 AMPS EACH.
OPTIONS..........................BAG BLOWER, PORTION TIMER, BAG TAPER, COIN OR
                                     TOKEN MECHANISM.

Key Benefits

	LP SERIES - DESIGNED FOR HEAVY DUTY USE BY VOLUME FEEDERS, HOTELS, VENDING OPERATIONS, INSTITUTIONS AND HOSPITALS WHERE HEIGHT IS CRITICAL.
	AUTOMATIC - ICE IS DISPENSED BY FOOT PEDAL CONTROL (AUTOMATIC TIMER CONTROL OPTIONAL).
	DELIVERY SYSTEM - STAINLESS STEEL DELIVERY AUGER DRIVEN BY A HEAVY DUTY GEAR MOTOR THROUGH A ROLLER CHAIN DRIVE SYSTEM.
	AGITATION SYSTEM - PUSHBUTTON ACTIVATED ALL STAINLESS STEEL AGITATORS (4) ARE POWERED BY TWO SEPARATE GEAR MOTORS (UPPER AND LOWER) THROUGH A CONNECTING ROLLER CHAIN DRIVE SYSTEM tag heuer replica.
	SERVICEABILITY - THE ENTIRE UNIT IS SERVICEABLE FROM THE FRONT AND SIDES. ALL SHAFTS CAN BE REMOVED FROM THE FRONT. MINIMIZES REAR CLEARANCE SPACE.

Model Specifications
