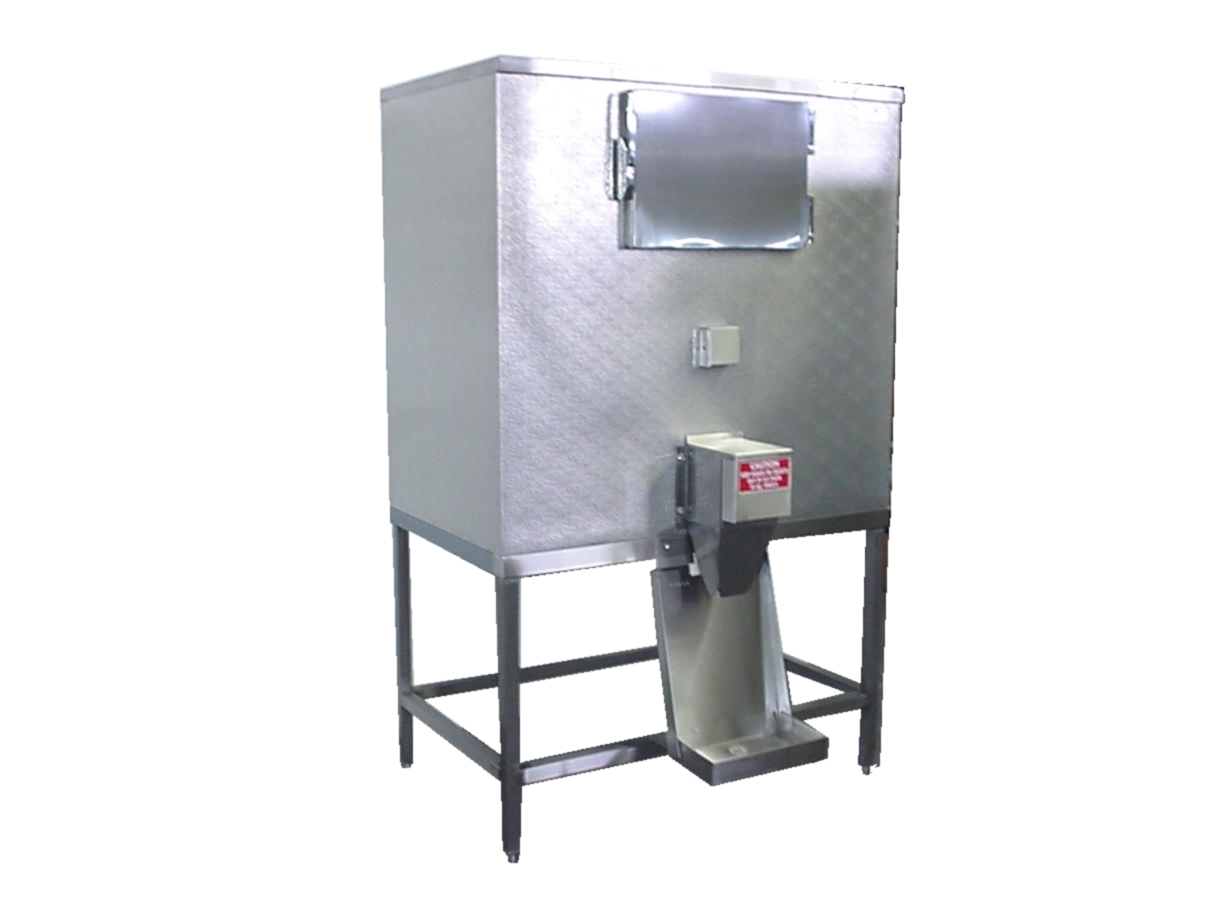

MINI BAGGING ICE DISPENSERS

GENERAL SPECIFICATIONS

INTERIOR........................ STAINLESS STEEL, TYPE 304 TANK, FULLY WELDED SEAMS.
EXTERIOR....................... POLISHED STAINLESS STEEL or STUCCO ALUMINUM.
                                   GALVANIZED STEEL BACK and BOTTOM (STAINLESS
                                   STEEL OPTIONAL).
INSULATION.................... 2” FOAMED IN PLACE URETHANE (NON-CFC)
DRAIN.............................. 1/2” MPT, BOTTOM.
LEGS.................................STAINLESS STEEL PIPE LEGS WELDED INTO AN ANGLE IRON
                                       FRAME . ADJUSTABLE STAINLESS STEEL FEET.
DELIVERY SYSTEM............SPIRAL AUGER TYPE, STAINLESS STEEL CONSTRUCTION.
ELECTRICAL.....................115v/60hz/1ph (1) 3/4 HP GEAR MOTOR, 10.8 AMPS.
OPTIONS..........................BAG BLOWER, PORTION TIMER, BAG TAPER, COIN OR
                                    TOKEN MECHANISM.



Key Benefits

MINI SD SERIES - GREAT FOR BEVERAGE STORES, CONVENIENCE STORES, GAS STATIONS OR ANY LOCATION WISHING TO USE OR BAG DISPENSED ICE.
AUTOMATIC - ICE IS DISPENSED BY FOOT PEDAL CONTROL .
DELIVERY SYSTEM - STAINLESS STEEL DELIVERY AUGER DRIVEN BY A HEAVY DUTY GEAR MOTOR THROUGH A ROLLER CHAIN DRIVE SYSTEM.
AGITATION SYSTEM - ALL STAINLESS STEEL AGITATOR IS POWERED THE SAME GEAR MOTOR THROUGH A CONNECTING ROLLER CHAIN DRIVE SYSTEM.
SERVICEABILITY - THE ENTIRE UNIT IS SERVICEABLE FROM THE FRONT AND REAR. ALL SHAFTS CAN BE REMOVED FROM THE FRONT. THIS ELIMINATES SIDE CLEARANCE AND MINIMIZES SPACE REQUIRED FOR REAR CLEARANCE (12”).


HEAVY DUTY DELIVERY AUGER AND AGITATOR FOR TROUBLE-FREE OPERATION

Model Specifications

MODEL NUMBER

APPROX STORAGE (lbs.)

WIDTH
(in.)

DEPTH
(in.)

HEIGHT
(in.)

SD-650

SD-900

650

900

34¼

48¼

30

30

78

78

Height includes 32” for stand which can be taller or shorter.

*For overall depth, add 16” for front nozzle and rear cover.

Allow 12” behind unit for servicing.
