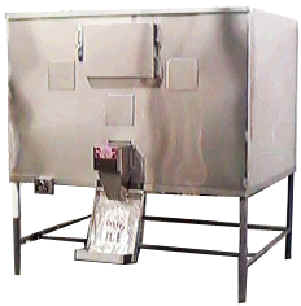

VOLUME BAGGING ICE DISPENSERS

GENERAL SPECIFICATIONS

INTERIOR........................ WELDED ANGLE IRON FRAME. STAINLESS STEEL, TYPE 304, TANK,
                                             FULLY WELDED SEAMS.
EXTERIOR....................... POLISHED STAINLESS STEEL or STUCCO ALUMINUM. ALUMINUM
                                            BACK and GALVANIZED STEEL BOTTOM (STAINLESS STEEL OPTIONAL).
                                            TWO SECTION BODY OPTIONAL.
INSULATION.................... 2 EXPANDED POLYSTYRENE.
DRAIN.............................. 1 MPT, CENTER BOTTOM.
LEGS.................................PAINTED PIPE (STAINLESS OPTIONAL) STAINLESS STEEL FEET.
DELIVERY SYSTEM............SPIRAL AUGER TYPE, STAINLESS STEEL CONSTRUCTION.
ELECTRICAL.....................208-230v/60hz/1ph (MODEL SD-5000 HAS TWO ELECTRIC BOXES
                                   (2) 3/4 HP GEAR MOTOR, 5.5 AMPS EACH, (MODELS SD-1400,
                                   SD-2000, and SD-2500).
                                   (3) 3/4 HP GEAR MOTOR, 5.5 AMPS EACH, (MODEL SD-3000).
                                   (4) 3/4 HP GEAR MOTOR, 5.5 AMPS EACH, (MODEL SD-5000).
OPTIONS..........................BAG BLOWER, PORTION TIMER, BAG TAPER, COIN OR TOKEN
                                             MECHANISM.



Key Benefits

SD SERIES - DESIGNED FOR HEAVY DUTY USE BY VOLUME FEEDERS, HOTELS, VENDING OPERATIONS, INSTITUTIONS AND HOSPITALS.
AUTOMATIC - ICE IS DISPENSED BY FOOT PEDAL CONTROL (AUTOMATIC TIMER CONTROL OPTIONAL).
DELIVERY SYSTEM - STAINLESS STEEL DELIVERY AUGER DRIVEN BY A HEAVY DUTY GEAR MOTOR THROUGH A ROLLER CHAIN DRIVE SYSTEM. (SD-5000 HAS TWIN AUGERS WITH SEPARATE FOOT PEDALS).
AGITATION SYSTEM - PUSHBUTTON ACTIVATED ALL STAINLESS STEEL AGITATORS ARE POWERED BY A SEPARATE GEAR MOTOR(S) THROUGH A CONNECTING ROLLER CHAIN DRIVE SYSTEM.
SERVICEABILITY - THE ENTIRE UNIT IS SERVICEABLE FROM THE FRONT AND REAR. ALL SHAFTS CAN BE REMOVED FROM THE FRONT. THIS ELIMINATES SIDE CLEARANCE AND MINIMIZES SPACE REQUIRED FOR REAR CLEARANCE (12�).

Model Specifications

MODEL NUMBER

APPROX STORAGE (lbs.)

WIDTH
(in.)

DEPTH
(in.)

HEIGHT
(in.)

SD-1400

SD-2000

SD-2500

SD-3000

SD-5000

1400

2000

2500

2800

5000

60¼

72¼

72¼

86¼

140¼

54¼

56¼

 56¼

56¼

56¼

78

80

90

92

90

Height includes 32 for stand which can be taller or shorter.

*For overall depth, add 16 for front nozzle and rear cover.

Allow 12 behind unit for servicing.
