INTERIOR.................... STAINLESS STEEL, TYPE 304, POLISHED, ALL SEAMS
BONDED AND CORNERS ARE COVED WITH A ¼” RADIUS.
EXTERIOR................... STAINLESS STEEL, TYPE 304, POLISHED.
INSULATION................FOAMED-IN -PLACE, NON-CFC, URETHANE
GASKET...................... REPLACEABLE, MAGNETIC, MOLDED VINYL. GREASE AND OIL
RESISTANT
HARDWARE................. CHROME PLATED WITH KEYED CYLINDER LOCKING LATCH.
SHELVES.................... PERFORATED STAINLESS STEEL ADJUSTABLE SHELVES WITH
SPILL GUARDS.
ELECTRICAL............... 115V/60HZ/1PH., OR 115V.D.C. WITH OPEN TYPE
COMPRESSOR.
Key Benefits

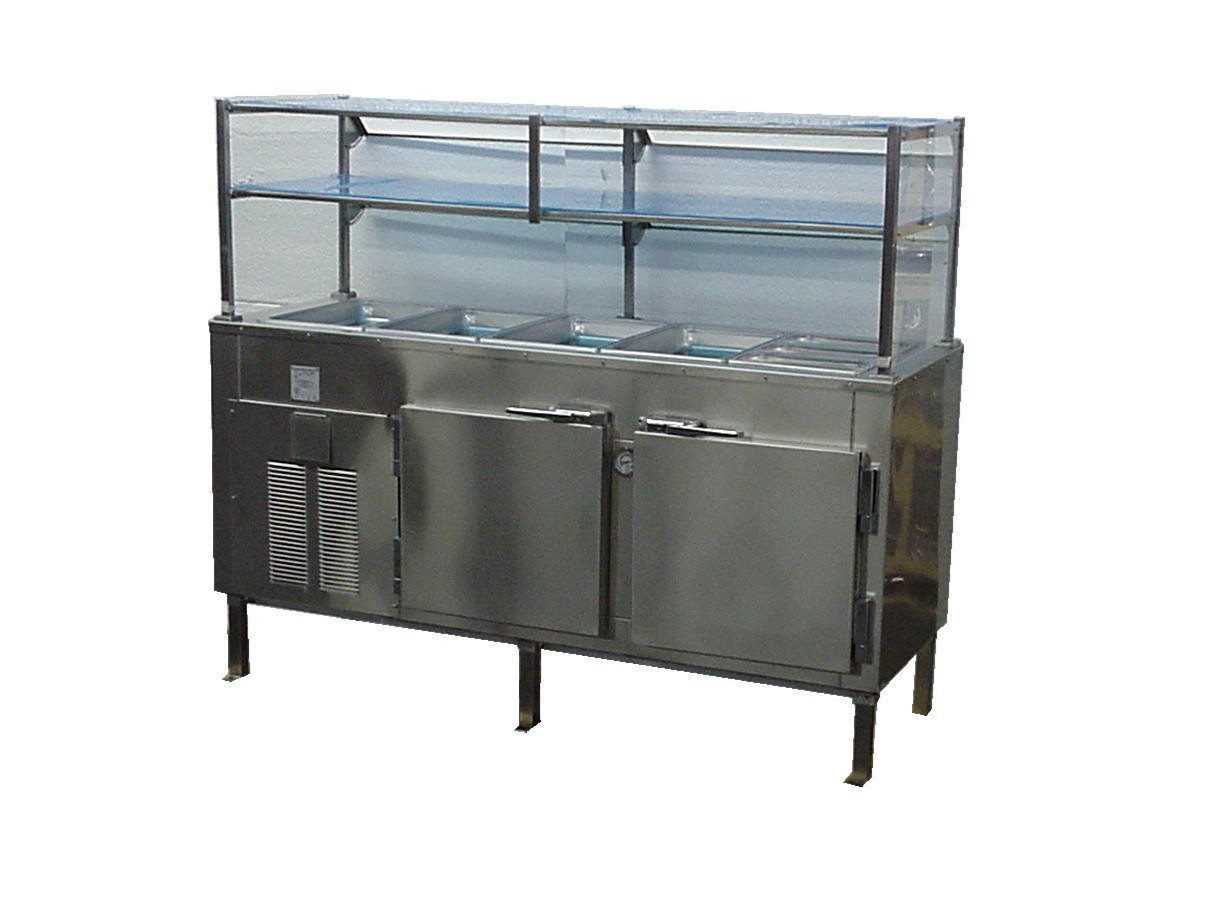

THESE COLD FOOD COUNTERS ARE DESIGNED AND CONSTRUCTED FOR SHIPBOARD USE IN
ACCORDANCE WITH MILITARY SPECIFICATION MIL-C-43300.
REFRIGERATED COMPARTMENTS ARE EQUIPPED WITH BLOWER TYPE EVAPORATORS. FOOD
PAN WELL HAS COLD WALL EVAPORATOR. HERMETICALLY SEALED CONDENSING UNIT,
R-134a REFRIGERANT, INDEPENDENTLY CONTROLLED REFRIGERATION SYSTEMS AND 2”
DIAL THERMOMETER.
FRONT AND REAR LOUVERED PANEL IS REMOVABLE TO ALLOW ACCESSIBILITY FOR
SERVICING OF EQUIPMENT LOCATED IN THE CONDENSING UNIT COMPARTMENT.
EACH CABINET IS EQUIPPED WITH 7-½” REMOVABLE MOUNTING LEGS AND A 3/16”
CHANNEL BASE FRAME FOR DECK MOUNTING.
Model Specifications
SIZE
MODEL NUMBER
WIDTH(in.)
DEPTH(in.)
HEIGHT
(in.)
WT.
(LBS)
3 PAN
4 PAN
5 PAN
6 PAN
ECP-3-1368RC
ECP-4-1368RC
ECP-5-1368RC
ECP-6-1368RC
45¼
66
70¼
82½
25½
25½
25½
25½
36
36
36
36
525
600
750
800
OPTIONS
STYLE A - NON-REFRIGERATED DISPLAY CASE
STYLE B - WITHOUT DISPLAY CASE (NOTHING)
STYLE C - PROTECTOR SHELF
STYLE D - OVERHEAD BREATH GUARD
