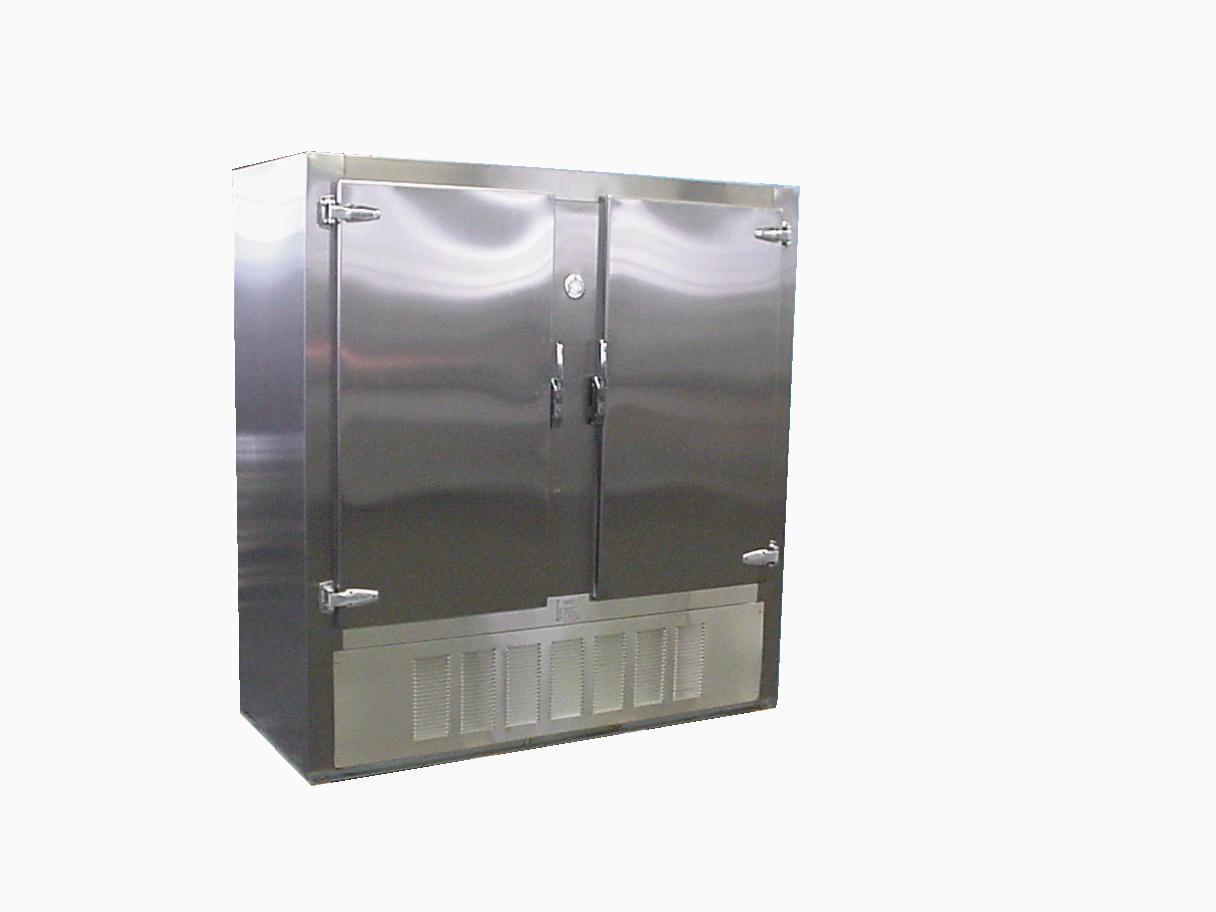

UPRIGHT - TYPE I, STYLE 1

GENERAL SPECIFICATIONS

INTERIOR.................... STAINLESS STEEL, TYPE 304, POLISHED, ALL SEAMS BONDED AND           COVED CORNERS.
EXTERIOR.................... STAINLESS STEEL, TYPE 304, POLISHED.
INSULATION................2 INCHES, NON-CFC
GASKET....................... REPLACEABLE MOLDED VINYL. GREASE AND OIL RESISTANT
HARDWARE................. CHROME PLATED WITH KEYED CYLINDER LOCKING LATCH.
SHELVES..................... PERFORATED STAINLESS STEEL ADJUSTABLE SHELVES WITH SPILL GUARDS.
INTERIOR LIGHT......... LIGHT IS ACTIVATED BY THE OPENING AND CLOSING OF ANY DOOR.
ELECTRICAL............... 115V/60HZ/1PH., OR 115V.D.C. WITH OPEN TYPE COMPRESSOR

Key Benefits

THESE SELF CONTAINED UNITS ARE DESIGNED AND CONSTRUCTED FOR SHIPBOARD USE IN ACCORDANCE WITH MILITARY SPECIFICATION MIL-R-21098E.
REFRIGERATORS ARE EQUIPPED WITH BLOWER TYPE EVAPORATORS, HERMETICALLY SEALED CONDENSING UNITS, R-134a REFRIGERANT AND 2 DIAL THERMOMETER.
FRONT LOUVERED PANEL IS REMOVABLE TO ALLOW ACCESSIBILITY FOR SERVICING OF EQUIPMENT LOCATED IN THE CONDENSING UNIT COMPARTMENT.
EACH REFRIGERATOR IS EQUIPPED WITH 7- REMOVABLE MOUNTING LEGS AND A 3/16 CHANNEL BASE FRAME FOR DECK MOUNTING.

Model Specifications

SIZE

MODEL NUMBER

WIDTH(in.)

DEPTH(in.)

HEIGHT(in.)

WT.(LBS)

4

5

8

10

12

15

ER-4-1368*

ER-5-1368

ER-8-1368

ER-10-1368

ER-12-1368

ER-15-1368

24

24

24

32

32

39

24

22

24

24

24

24

34

56

62

62

72

69

280

300

350

380

390

420

20

30

40

ER-20-1368

ER-30-1368

ER-40-1368

48

58

66

25

27

29

72

70

70

580

660

720

50

65

85

ER-50-1368

ER-65-1368

ER-85-1368

72

74

90

32

32

32

70

70

70

800

870

940

-When ordering specify Class A for optional explosion proof construction. Class B, non-explosion proof construction is standard.
-Available in non-magnetic models.

* Equipped with ice maker type evaporator
